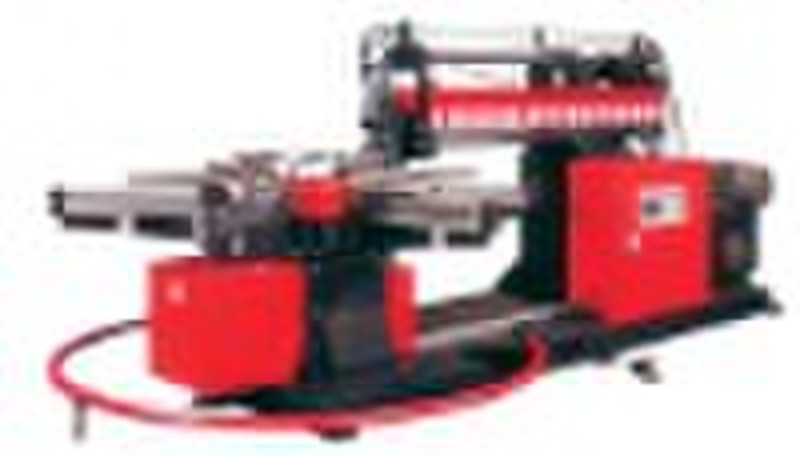

NC Circular Punching Machine

TFT Human machine interface display, touching controllable screen setting, digital control systems, servo motor positioning dimension precision, attached with modular memory functions. Operational Function: Jogging /Automatic Functions Application:1 1/2''&2'',2.5-6mm(thick) iron, stainless steel, equallateral or unequal lateral flange diameter ¤22-¤120puncturing. Puncturing Capability: Orifice diameter ¤3/8-1/2OB,Orificie counts:2,3,4,5,6,7,8,9360 Oil Hydraulic System: Stem-less operation pressure adjustment, hydraulic loops designed with zero load, stable pressure output, combiner with oil pump moters with exteremely low frequency, increased motor efficiency and service duration. The clamping motor is designer with sufficient clamping power. The machine is equipped with the coding device to control the clamping operation depending on diameters of work pieces with high stability and well secured fixture of work pieces. Electrical Control System: It is designer with human machine interface ,angular dials, and adjustable puncturing rod positions and highly precise Japan-made servo motors to assure of accurate and convenient operation. Boyd:5000mm(L)2400MM(W)2400(H)Total Weight :3.5T Diameter, Orifice counts, Orifice interval program setup simple, high efficiency processing.
